Mastering the intricacies of heat pipe design is key to developing highly efficient cooling solutions for modern electronics. The way a heat pipe is designed directly influences its ability to transfer heat rapidly and reliably, making it a critical focus for engineers and designers alike. In this article, we’ll dive into the essential principles and techniques behind effective heat pipe design to help you optimize thermal management in your projects.

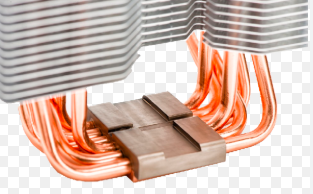

What Is a Heat Pipe?
It offers extremely high thermal conductivity (10,000–100,000 W/m·K), outperforming solid metals.
Key Components
- Shell: Copper or aluminum for strength and heat flow.
- Wick: Moves fluid back via capillary action; types include grooved, mesh, sintered, and fiber.
- Working Fluid: Chosen for its temperature range and compatibility (e.g., water, methanol).
- Size & Orientation: Affects heat capacity and efficiency; wick type must suit the layout.
Design Tips
- Match the wick and fluid to operating conditions.
- Optimize size for heat load and device space.
- Ensure good thermal contact.
- Test limits like dry-out or sonic flow.
Heat pipes provide fast, even cooling in compact devices by transferring heat from hot spots to cooler areas, all without fans or moving parts.
Choosing a Working Fluid for Heat Pipes
Selecting the right fluid is essential for effective heat pipe performance. Key factors include:
- Operating Temperature Range: Match fluid to the device’s temperature needs.
- Merit Number: Indicates thermal efficiency. Water has the highest among standard fluids.
- Material Compatibility: Ensure fluid doesn’t corrode the pipe or wick.
- Fluid Properties: Look for high latent heat, low viscosity, good surface tension, and chemical stability.
- Pressure Behavior: Vapor pressure must stay within safe operating limits.
Recommended Fluids
- Water: Best all-around for ambient to high temps.
- Methanol/Ethanol: Suitable for lower or freezing temperatures.
- Ammonia: Ideal for aerospace or very cold environments.
Emerging Options
- Nanofluids & Mixtures: Offer better performance but add complexity.
Checklist for Selection
- Confirm temperature range.
- Assess performance (Merit Number).
- Verify material compatibility.
- Check pressure behavior.
- Ensure safety and reliability.
- Prototype and simulate before finalizing.
Water is the top choice for most electronics due to its excellent thermal and material properties, while specialty fluids suit specific use cases.
Key Elements of Heat Pipe Design
- Wick Structure
Creates capillary pressure to return condensed fluid to the evaporator, enabling continuous heat transfer and orientation independence.
Types:
- Grooved: Low cost, high vapor permeability, limited lift—best horizontal or gravity-assisted.
- Mesh/Screen: Moderate capillary action, flexible for bends.
- Sintered Powder: Highest capillary pressure, works in any orientation, supports high heat flux (~250 W/cm²).
- Fiber: Good for tight bends, moderate capillary strength.
- Composite: Combines structures to balance capillary pressure and permeability.
Trade-off: Balance small pores (high capillary pressure) vs large pores (high permeability) and wick thickness for optimal performance.
- Working Fluid Selection
Operating temperature range, material compatibility, thermophysical properties (latent heat, vapor pressure, surface tension), safety, and stability.
Common Fluids:
- Water (best for ~25–150 °C).
- Ammonia (low temp/aerospace, <0 °C).
- Methanol, Acetone (sub-zero to ~120 °C)
Impact: Fluid properties affect max heat load, startup behavior, and reliability.
- Pipe Material & Geometry
Copper preferred for thermal conductivity and corrosion resistance; aluminum or stainless steel used with compatible fluids for cost or weight benefits.
Geometry:
- Diameter affects heat capacity and size; a larger diameter means higher capacity but more bulk.
- Length influences thermal resistance; shorter pipes perform better conduction-wise.
- Wall thickness balances strength and internal volume; excessive bending/flattening can impede vapor flow or wick function.
Effective heat pipe design requires a coordinated choice of wick structure, working fluid, and pipe dimensions. Optimizing these together based on heat load, orientation, temperature range, and material compatibility ensures reliable, high-performance thermal management.
Advanced Techniques and Innovations
Heat pipes are devices that move heat efficiently to keep things cool, especially in electronics and machines. Recently, new designs and materials have made heat pipes even better for many uses.
1. Graphene-Enhanced Heat Pipes
These use a special material called graphene combined with copper to move heat much faster, about three times better than regular copper heat pipes. This makes them great for lightweight and powerful cooling in things like computers and airplanes.
2. Flexible Heat Pipes Inspired by the Human Spine
Scientists designed heat pipes that bend and flex like a human spine. This helps them fit into tight or oddly shaped spaces while still moving heat well.
3. Loop Heat Pipes (LHPs)
Loop Heat Pipes move heat over long distances using tiny channels and a natural pumping action (called capillary action). They work well even when placed vertically or upside down, making them good for space and ground use.
4. Pulsating Heat Pipes (PHPs)
Pulsating Heat Pipes (PHPs) transfer heat efficiently by moving liquid back and forth in small channels without needing a wick, enabling effective operation in any orientation.
5. Conformal Cooling Channels
Used in making plastic parts, these cooling channels follow the shape of the mold exactly. This helps cool parts evenly and quickly, improving production speed and quality.
6. Hydrogel Based Negative Pressure Heat Pipes
These use special gels that create suction when they evaporate, helping move heat very efficiently. They show promise for new cooling technologies.
7. CuproBraze Technology
This is a strong copper alloy used in heat exchangers that can handle very high temperatures and pressures. It’s more durable and resistant to corrosion, ideal for tough uses like in cars and heavy industry.
8. Flat and Micro-Grooved Heat Pipes
These flat heat pipes have tiny grooves inside that help spread heat evenly and quickly. They are great for cooling electronic devices where space is tight.
Where These Advances Are Used
- Electronics: Cooling powerful computer parts like CPUs and GPUs.
- Aerospace: Keeping spacecraft and satellites at safe temperatures.
- Automotive: Improving vehicle cooling systems for better performance.
- Medical Equipment: Precisely cooling devices like MRI machines to keep them safe and accurate.
These new heat pipe designs and materials help keep things cooler, longer, and more reliably in many fields.
Challenges and Solutions in Heat Pipe Thermal Management
Heat pipes are widely used for efficient heat transfer but face several challenges that can affect their performance and reliability. Understanding these issues and applying solutions is key to optimizing their function.
Common Challenges
- Orientation Sensitivity: Traditional heat pipes rely on gravity to return fluid, so alternative methods like wick structures or pumps are needed in zero gravity or nonvertical setups.
- Manufacturing Limitations: Precision manufacturing is complex, costly, and requires specialized equipment to maintain quality and sealed environments.
- Material Constraints: Materials must have strong thermal properties and be compatible with fluids. Corrosion (e.g., in copper pipes) can reduce effectiveness, and protective coatings may affect heat transfer.
- Performance Limits: Heat pipes have a maximum heat flux capacity, generally lower than liquid cooling, which must be considered in design.
- Environmental Impact: Extraction and processing of materials are energy-intensive, and working fluids can harm the environment if released.
Solutions to Enhance Performance
- Advanced Manufacturing: 3D printing enables complex, customized designs that improve efficiency and reduce material use.
- Material Innovations: New alloys and composites, like graphene enhanced pipes, increase heat dissipation and reduce weight.
- Design Optimization: Simulation tools (e.g., Finite Element Analysis) help optimize wick structures, fluids, and geometry before prototyping.
- Environmental Considerations: Lifecycle assessments and eco-friendly materials/fluids help reduce the carbon footprint and improve sustainability.
By addressing these challenges with innovative approaches, heat pipe technology can keep advancing to provide reliable, efficient cooling solutions across industries.
